MMD KM16 Pro Aluminum Macro Pad
CNC aluminum, gasket-mounted and fully programmable — a compact 16-key pad with three dials that puts your shortcuts, macros and media controls one tap away.
MMD KM16 Pro, in Full Detail
CNC aluminum, gasket-mounted 16-key macro pad with three programmable dials — built to keep your shortcuts one tap away.
CNC Aluminum
Milled from a single block of aluminum with a frosted lower cover — solid, cool and compact on any desk.
16 Keys + 3 Knobs
A 4 × 4 key grid with two compact dials and one large multimedia knob — every control programmable.
Gasket Structure
FR4 positioning board, Poron sandwich cotton, IXPE pad and a PET sound layer for a soft, cushioned feel.
Hot-Swappable
Full-key hot-swap sockets — pull a switch and drop in another with no soldering, whenever you like.
VIA Programmable
Six layers, macros and combo-key recording through the VIA configurator. No drivers to install.
RGB Layer Light
An RGB indicator strip shows the active layer at a glance, so you always know where you are.

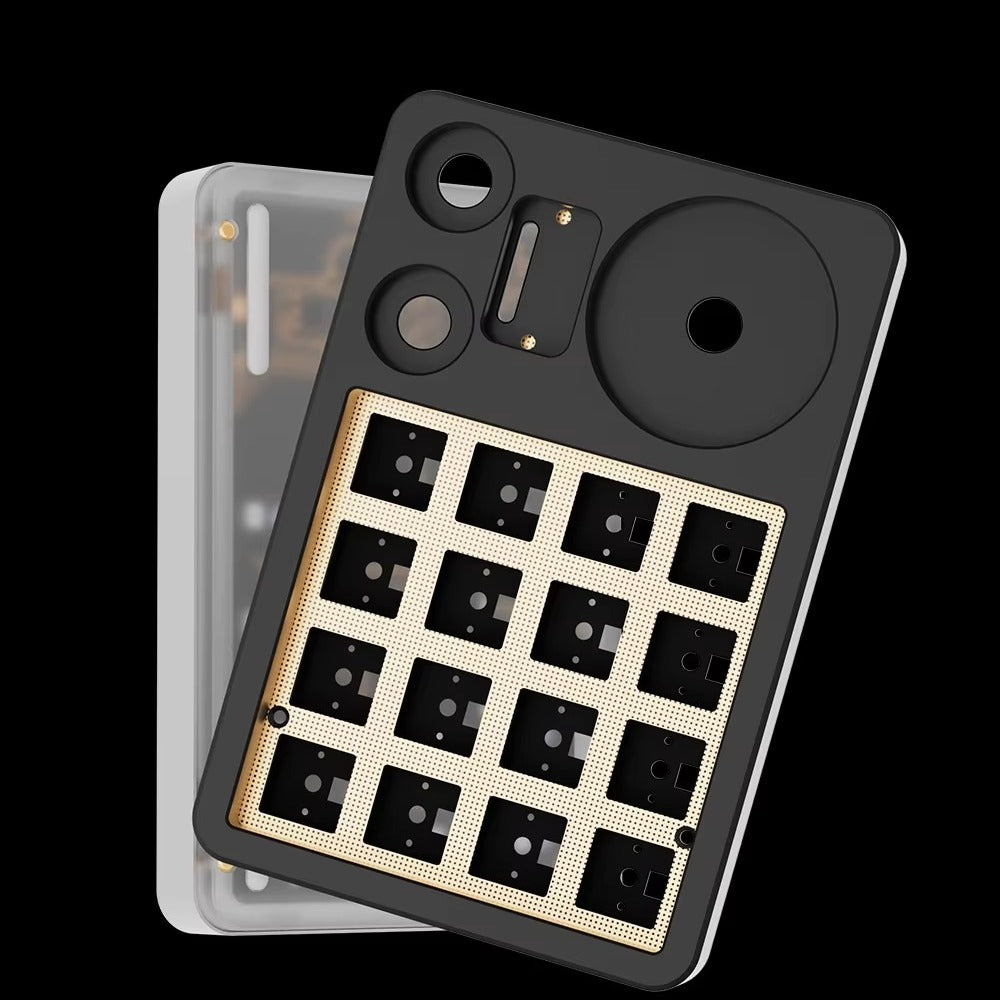

CNC-Carved Aluminum
Every body is milled from a solid block of aluminum and closed with a frosted lower cover. The result is a dense, 378 g pad that stays planted on the desk and feels cool to the touch — no plastic creak, no sliding around mid-session.

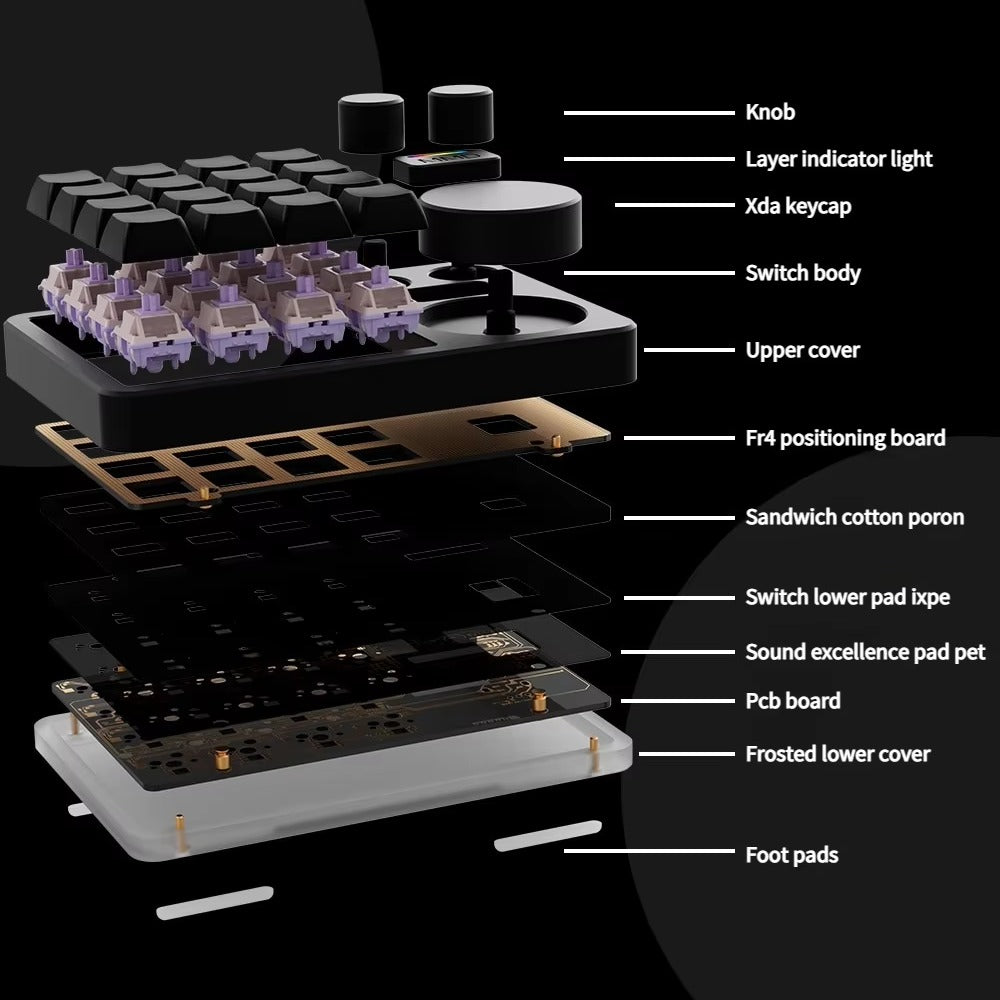

Gasket, Layer by Layer
Inside, an FR4 positioning board sits on Poron sandwich cotton, above an IXPE switch pad and a PET sound-excellence layer, all bolted to the PCB. The stack softens every press and keeps the sound low and full instead of hollow.

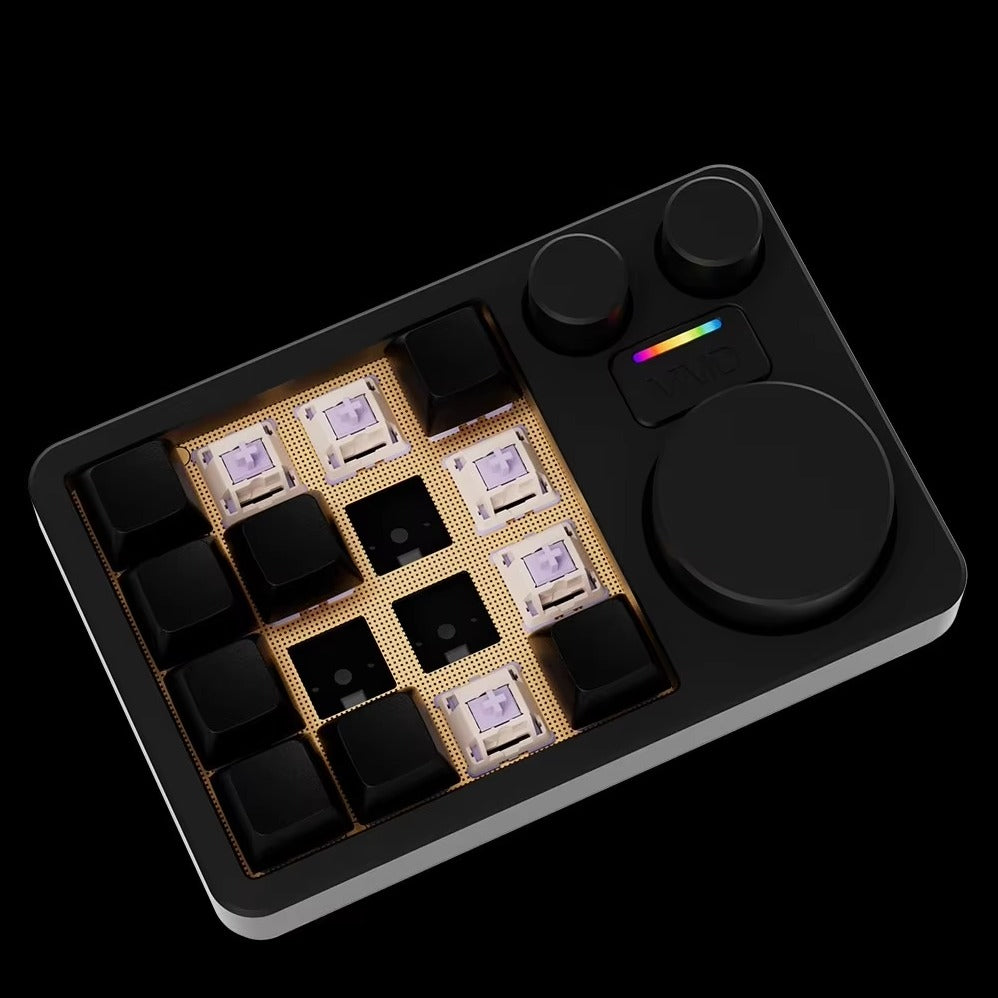

Full-Key Hot-Swappable
All sixteen keys use hot-swap sockets, so you can lift the XDA caps and drop in the switches you prefer — linear, tactile or clicky — without touching a soldering iron. Tune the feel of the pad to your own preference.

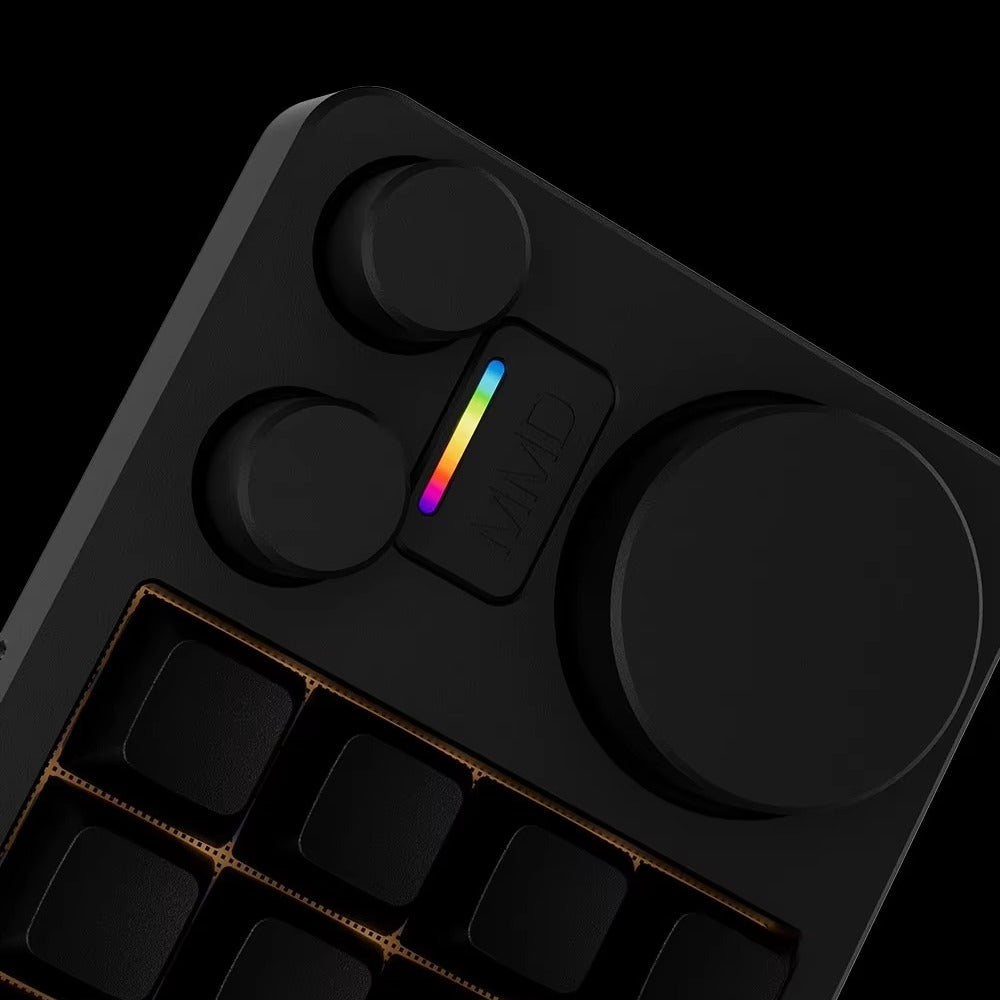

Three Dials, One Hand
Two compact knobs sit beside a large multimedia dial, and each one is programmable. Scrub a timeline, ride the volume, zoom a canvas or step through layers — the kind of control designers reach for without leaving the workflow.

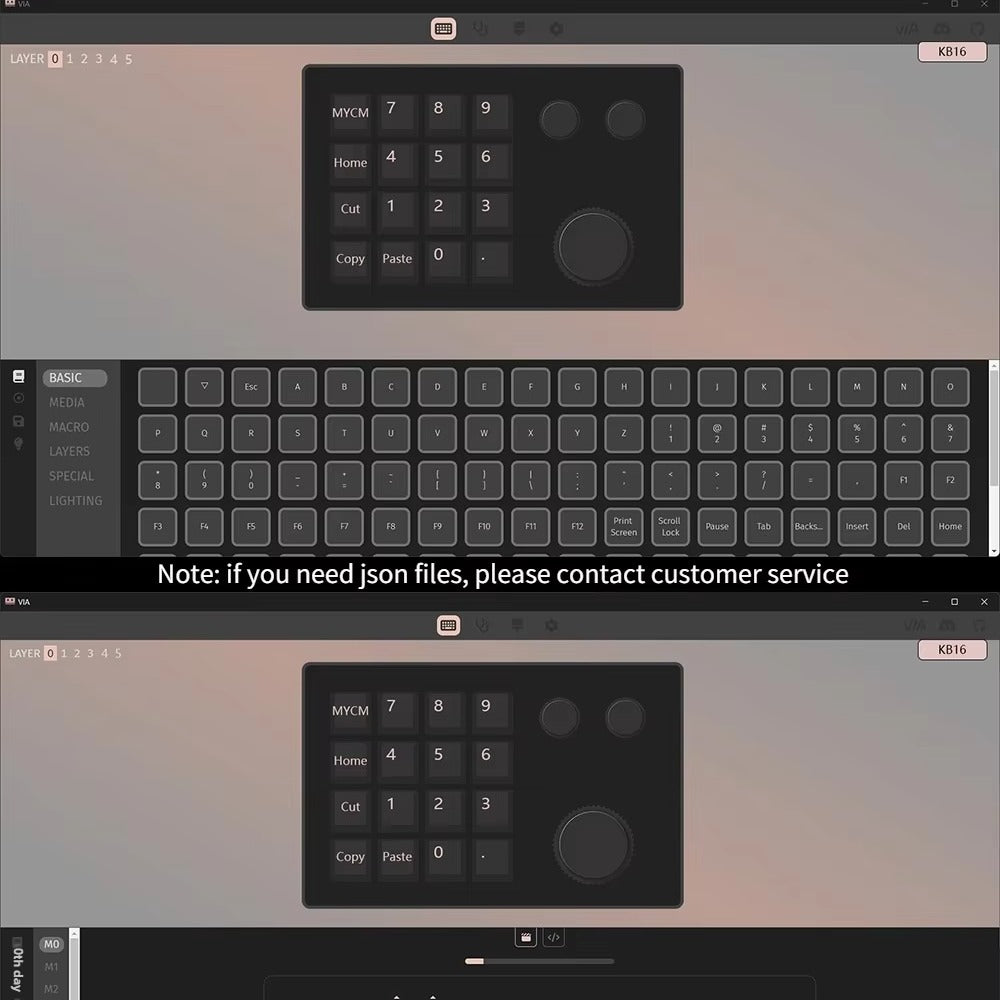

Remap Everything in VIA
Open the VIA configurator in your browser and see exactly what you get. Six layers, media shortcuts, macros and direct recording of complex combined keystrokes — assign them in seconds, no drivers, no guesswork.

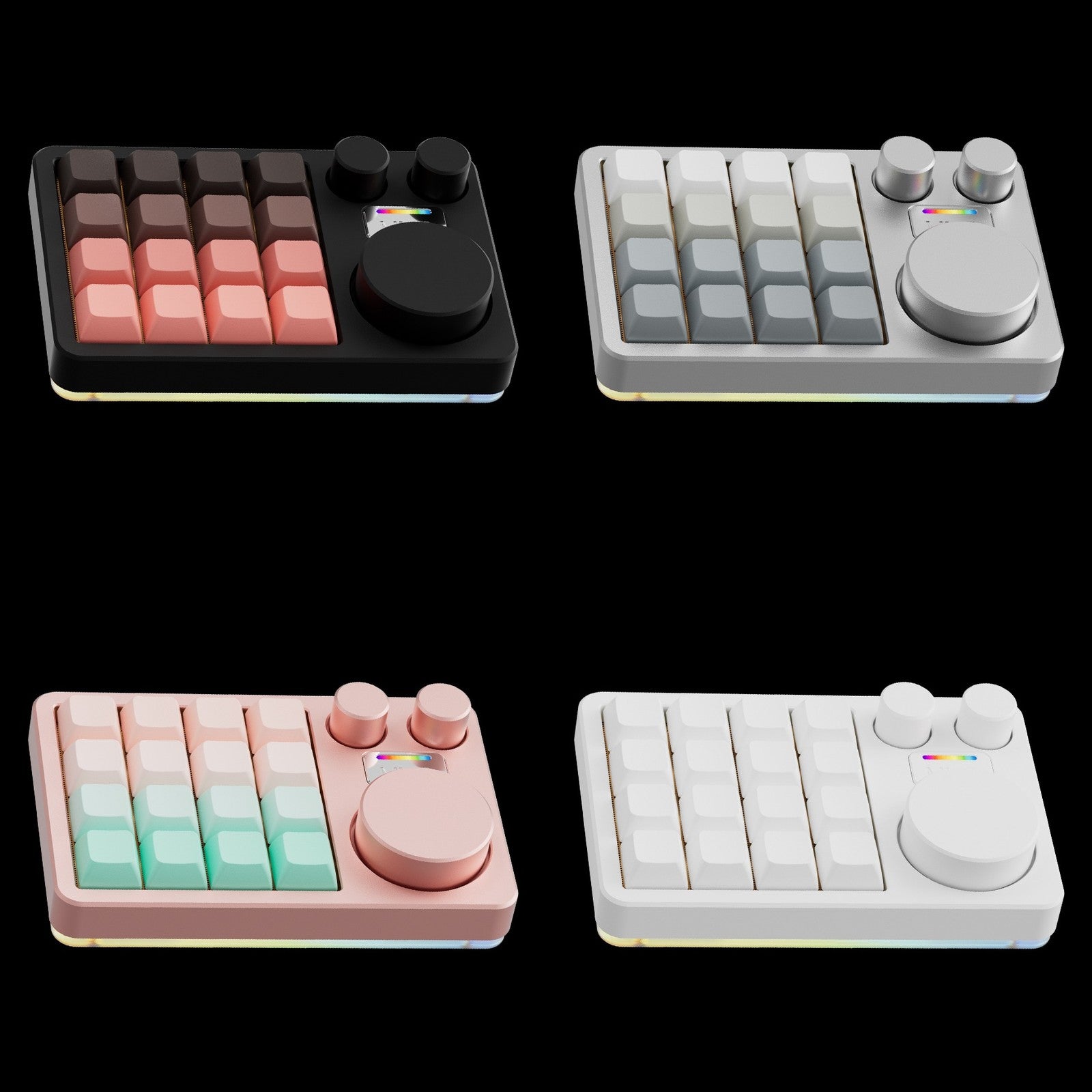

Four Colorways
Starry Night Black, Starlight Silver, Imperial Concubine Pink and Electrophoretic White — machined finishes that pick up light along the chamfered edges. Choose the one that matches the rest of your desk.
Tech Specs
| Product | MMD KM16 Pro Aluminum Macro Pad |
|---|---|
| Layout | 16 keys (4 × 4) + 3 rotatable knobs |
| Case | CNC aluminum · frosted lower cover |
| Mount | Gasket structure |
| Keycaps | XDA profile |
| Hot-Swap | Full-key hot-swappable |
| Internals | FR4 positioning board · Poron sandwich cotton · IXPE switch pad · PET sound pad |
| Indicator | RGB layer indicator light |
| Software | VIA configurator · 6 layers · macro & combo recording |
| Connection | USB-C wired (single mode) |

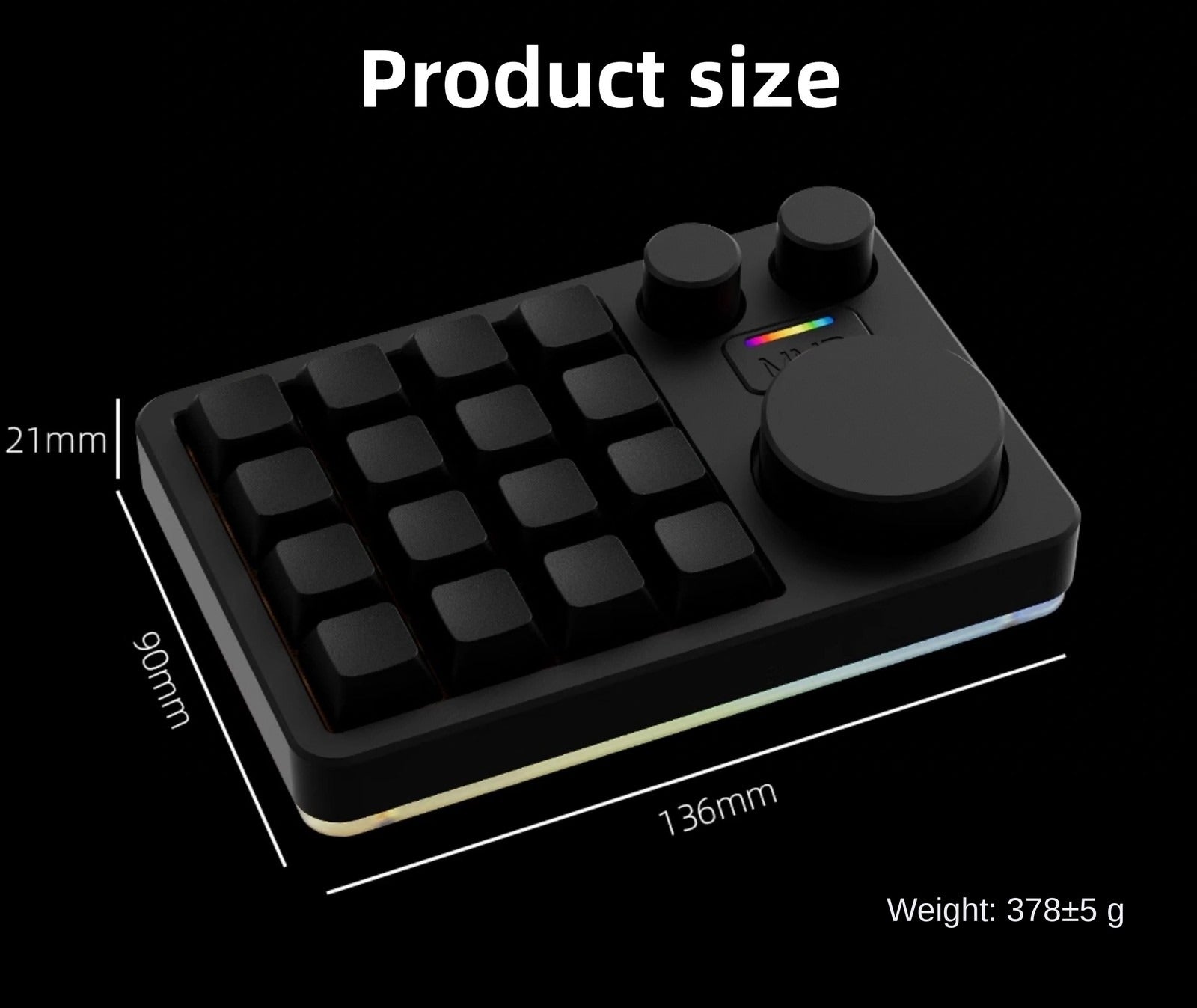

| Dimensions | 136 × 90 × 21 mm |
| Weight | ≈ 378 g (± 5 g) |
| Colors | Starry Night Black / Starlight Silver / Imperial Concubine Pink / Electrophoretic White |
Ready Out of the Box
Everything you need, in the box.
Frequently Asked Questions
Complete Your Setup
Round out your desk in one go.
Put Your Shortcuts One Tap Away
Plug it in, open VIA, and build the shortcuts you always wanted. Pick your colorway and go.
